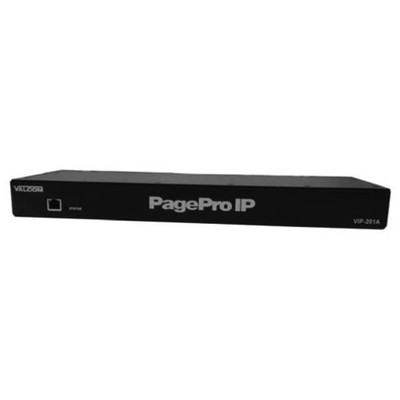

Valcom VIP-201A SIP Paging Server

The Valcom VIP-201A SIP paging system can control thousands of IP and analog speakers. The appliance can also work as a gateway, providing an interface to a legacy paging system. Connect the appliance to a SIP server as SIP stations/extensions, or as a SIP trunk. In station mode, the system can support up to eight SIP groups or zones. In trunk mode, the system can support up to 100 SIP phone numbers.

Optional Valcom VIP series devices provide the VIP-201A with connectivity to FXO ports or FXS ports. The switch port on the system provides network connectivity and power via PoE. A remote computer can program the system through the network connection. Power can also be provided through the optional external power supply.

Valcom VIP-201A Paging System Quick Specs:

• Analog Paging: 1 zone, one-way
• IP Paging: 8 SIP-addressable groups/zones
• AUX Input: 8 to 600 Ohms impedance, -10dBm nominal level
• Output: 50 Ohms impedance, -10dBm nominal level
• Relay Current: 1 Amp @ 24VDC current
• Switch Port: 1x RJ45
• PoE: 802.3af Class 3 compliant
• Connections: RCA jack for AUX in, 2x audio out, 4x Pin screw terminals, 2x Form C relays
• Dimensions: 1.75" H x 16.6" W x 5.4" D

Valcom PagePro VIP-201A Paging Gateway Package Contents:

• Valcom VIP-201A gateway
• 4x rubber pads
• 2x mounting brackets w/ hardware
• VSP document

Valcom VIP-201A Documentation:

• Valcom VIP-201A Installation Manual
