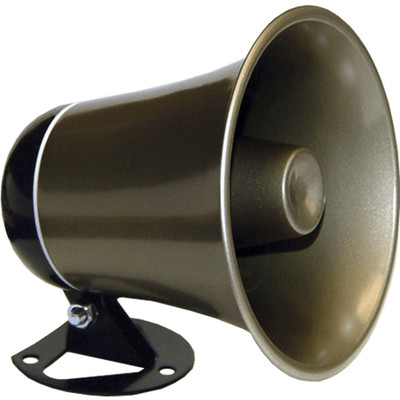

Viking 25AE-70V Analog Horn Speaker

Viking 25AE-70V analog paging horn is designed for 70V paging systems, providing cost-effective coverage to indoor and outdoor areas. The 5-inch compact cone-shaped horn is situated on an adjustable base which allows for this horn to be mounted and then directionally adjusted. When the horn is facing downward at 45° or more, the horn meets IP53 standards.

Users of the 25AE-70V can choose from five selectable power taps through the built-in transformer which operates with high efficiency keeping costs down. Perfect for amplifying sound in a large and loud space the horn can direct sound in the most ideal location. For intelligible audio and reduced installation and wiring, costs deploy the 25AE-70V paging horn in a factory, warehouse, or shopping center!

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Viking 25AE-70V Quick Specs:

• Maximum Power: 10W
• 70V Power Taps: 10W, 5W, 2.5W, 1.25W, 0.62W
• 25V Power Taps: 1.25W, 0.62W, 0.31W, 0.16W, 0.08W
• Viking Taps: 2.5W, 1.25W, 0.62W, 0.31W, 0.16W
• Dimensions: 5 in (diameter)
• Connection: 12 in 22 AWG pigtail wires

Viking 25AE-70V 70 Volt Paging Horn Package Contents:

• 25AE-70V Paging Horn

Viking 25AE-70V Documentation:

• Viking 25AE-70V Product Manual
