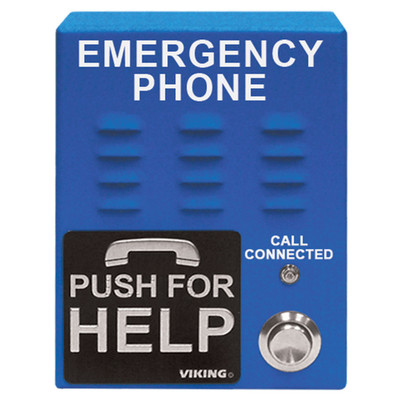

Viking E-1600-32-IP ADA-Compliant IP Emergency Phone

Connect the Viking E-1600-32-IP emergency phone to your SIP phone system. The phone is compatible with most standard SIP-based environments. Power the phone through the same Ethernet cable that is providing telephony services from the IP PBX. Advanced features include self-diagnostic reports to your email, and automatic polling and programming software. Remotely program the phone from a computer or touch tone device.

The Viking E-1600-32-IP phones marine grade 316 stainless steel body is resistant to corrosive elements such as sea water. Flush mount the phone, or deploy the optional VE-5x5 box to surface mount the phone. The phone provides instant access to emergency personnel or any other number. Up to five numbers can be programmed into the phone. Use this phone to reach personnel from anywhere for any reason.

Viking E-1600-32-IP Emergency Phone Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Ethernet Ports: 1x 10/100
• PoE: 802.3af Class 1
• Additional Interfaces: 3x gel-filled butt connectors
• Sound Pressure: up to 90dB SPL @ 1m
• Audio Codecs: G.711¼/a, G.722
• Temperature Range: -40°F - 140°F

Viking Electronics E-1600-32-IP Emergency Phone Package Contents:

• Viking E-1600-32-IP Emergency Phone
• Faceplate Gasket
• Torx T-10 Security Bit
• 6-32 x 0.75" Flat Head Torx Drive Screws
• Braille Label
• Gel-Filled Butt Connectors

Viking E-1600 Series Documentation:

• Viking E-1600 Series Product Manual
• Viking E-1600 Series Quick Start Guide
• Viking VoIP Compatibility Guide
