Viking E-1600-BLTIPEWP Outdoor ADA-Compliant IP Emergency Tower Phone

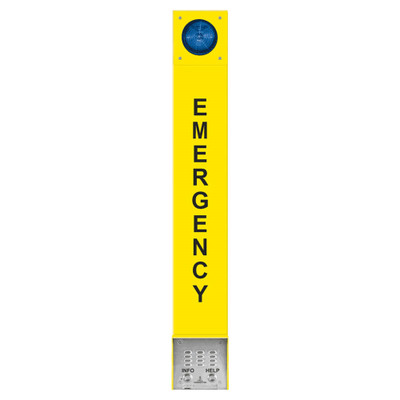

Viking E-1600-BLTIPEWP provides an ADA-compliant solution for emergency communications outdoors. A highly visible tower phone with integrated strobe light, E-1600-BLTIPEWP was designed for campuses, stations, roadside emergency sites, and similar critical applications. The network-connected intercom has a clearly labelled HELP button. The bright yellow chassis has EMERGENCY written on it in large easy-to-read letters. E-1600-BLTIPEWP has a blue LED strobe light at the top, which acts as a beacon. Configure, manage, and program the intercom and strobe light through the network.

Viking E-1600-BLTIPEWP features Enhanced Weather Protection (EWP), so it has sealed internals, a foam gasket for the speaker, and more. It meets the IP66 standard against dust and water ingress. It also has an extended operating temperature range of -40°F to 140°F. The intercom's faceplate is marine grade stainless steel and has Torx security screws to improve physical security. E-1600-BLTIPEWP meets ADA standards with elements to help with accessibility like a Call Connected LED for hearing-challenged people and braille lettering for sight-challenged people. E-1600-BLTIPEWP supports SIP, so it is compatible with a huge range of VoIP systems and cloud-based services, including 3CX, Asterisk, Avaya Aura, Cisco UCM, and RingCentral.

Viking E-1600-BLTIPEWP Tower Phone Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Ethernet Ports: 1x 10/100
• PoE: 802.3af Class 1
• Additional Interfaces: 3x gel-filled butt connectors
• Sound Pressure: up to 90dB SPL @ 1m
• Audio Codecs: G.711μ/a, G.722
• Temperature Range: -40°F - 140°F
• Durability Ratings: IP66

Viking Electronics E-1600-BLTIPEWP Tower Phone Package Contents:

• Assy Final
• Panel Gasket
• Assy Strobe Panel
• Hood
• Chassis E-1600-BLTIPEWP
• 5-16 x 2.5" Lag Screw
• Torx T-10 Security Bit
• Washer 5/16 Fender
• 6-32 x 0.75" Screw Flat Head Torx Drive, Stainless Steel
• Gel-Filled Butt Connectors
• Black, Red, and Green Wires Bundled with Cable Tie
• Transformer 12VDC

Viking E-1600 Series Documentation:

• Viking E-1600 Series Product Manual
• Viking E-1600 Series Quick Start Guide
• Viking VoIP Compatibility Guide
