Viking E-1600BLT2IPEWP Outdoor ADA-Compliant IP Emergency Tower Phone

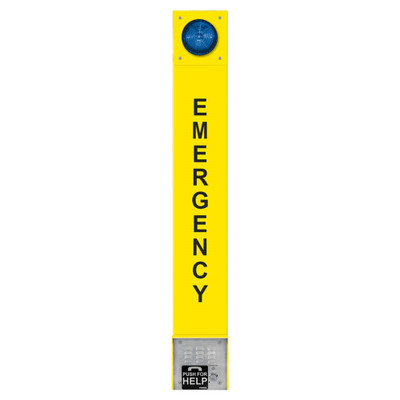

Viking E-1600BLT2IPEWP is a highly visible, ADA-compliant emergency phone with an integrated strobe light and Enhanced Weather Protection. Designed for critical communications on campuses, stations, parks, and similar environments, E-1600BLT2IPEWP is a network-connected phone with two buttons: INFO and HELP. Viking makes sure the phone is visible with EMERGENCY written in large letters on the bright yellow tower chassis. The large blue LED strobe light provides a visual beacon. Because the tower phone is connected to your network, it is very simple to program the strobe light pattern, what numbers the phone should call, and more.

Viking E-1600BLT2IPEWP features Enhanced Weather Protection (EWP). This is a complete solution for outdoors installation, with sealed internals, gasketed speaker, and more. E-1600BLT2IPEWP is IP66 rated against water and dust ingress. On top of that, the intercom has a marine grade stainless steel faceplate with Torx security screws. It is ADA-compliant: a Call Connected LED helps hearing-challenged people and braille lettering helps sight-challenged people. The network-connected emergency phone supports SIP. Use the phone with a standards based VoIP system or cloud-based service like 3CX, Asterisk, Avaya Aura, Cisco UCM, or RingCentral.

Viking E-1600BLT2IPEWP Tower Phone Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Ethernet Ports: 1x 10/100
• PoE: 802.3af Class 1
• Additional Interfaces: 3x gel-filled butt connectors
• Sound Pressure: up to 90dB SPL @ 1m
• Audio Codecs: G.711μ/a, G.722
• Temperature Range: -40°F - 140°F
• Durability Ratings: IP66

Viking Electronics E-1600BLT2IPEWP Tower Phone Package Contents:

• Assy Final
• Panel Gasket
• Assy Strobe Panel
• Hood
• Chassis E-1600BLT2IPEWP
• 5-16 x 2.5" Lag Screw
• Torx T-10 Security Bit
• Washer 5/16 Fender
• 6-32 x 0.75" Screw Flat Head Torx Drive, Stainless Steel
• Gel-Filled Butt Connectors
• Black, Red, and Green Wires Bundled with Cable Tie
• Transformer 12VDC

Viking E-1600BLT2IPEWP Documentation:

• Viking E-1600BLT2IPEWP Product Manual
• Viking E-1600BLT2IPEWP Quick Start Guide
• Viking VoIP Compatibility Guide
