Viking E-32-IP-EWP Outdoor Flush-Mount IP Entry Phone for 2-Gang Box

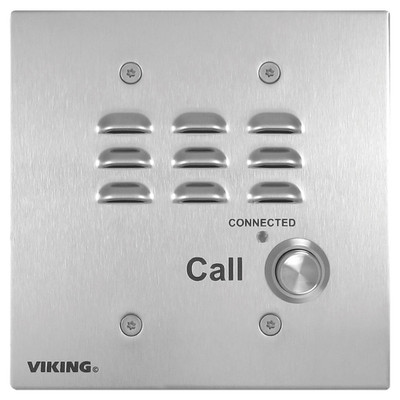

Viking E-32-IP-EWP is a network-connected door entry phone for outdoor installation in parking lots, ATMs, gate entrances, and similar locations. E-32-IP-EWP features Enhanced Weather Protection (EWP). This means that the internals are sealed, the speaker is gasketed, connectors have anti-corrosive gel, and more. E-32-IP-EWP meets the IP66 rating. Designed for installation in a standard double gang electrical box, E-32-IP-EWP has a marine grade stainless steel faceplate with laser-etched graphics. The entry phone supports two-way communications. It has a single Call button with a Connected LED indicator light next to it for a clear, visual signal of status. Viking has developed automatic noise cancellation technology for clarifying your conversations.

Viking E-32-IP-EWP runs the open SIP protocol and is compatible with numerous VoIP systems and cloud-based services, included 3CX, Asterisk, Avaya Aura, Cisco UCM, and RingCentral. Configure, manage, and program the entry phone through the network. There are 2-Amp relay contacts for connecting door strikes, strobe lights, and similar devices. The Torx security screws prevent tampering.

Viking E-32-IP-EWP Entry Phone Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Ethernet Ports: 1x 10/100
• PoE: 802.3af Class 1
• Additional Interfaces: 3x gel-filled butt connectors
• Sound Pressure: up to 90dB SPL @ 1m
• Audio Codecs: G.711μ/a, G.722
• Temperature Range: -40°F - 140°F
• Durability Ratings: IP66

Viking Electronics E-32-IP-EWP Door Entry Phone Package Contents:

• Viking E-32-IP-EWP Door Phone
• Faceplate Gasket
• Torx T-10 Security Bit
• 6-32 x 2/4" Flat Head Torx Drive Screws
• Gel-Filled Butt Connectors

Viking E-32 IP Series Documentation:

• Viking E-32 IP Series Product Manual
• Viking E-32 IP Series Quick Start Guide
• Viking VoIP Compatibility Guide
