Viking K-1270-EWP Entry Phone with Keypad & Card Reader

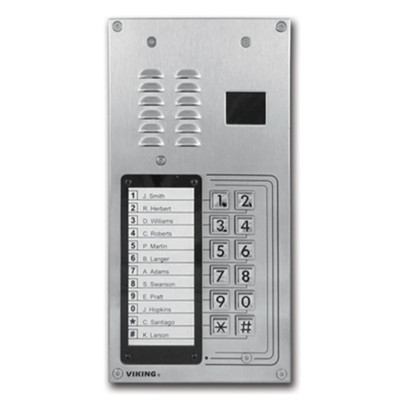

Viking K-1270-EWP is a two-way entry phone for apartment buildings, offices, gated communities, and similar locations. This model features Viking's Enhanced Weather Protection. It has an IP66 rating against ingress. As a door phone, the K-1270-EWP features a heavy duty keypad and a built-in 125 kHz proximity card reader for secure access control via cards or keyfobs. With integrated control for 12 speed-dial phone numbers and 50 keyless entry codes, the K-1270 makes entry simple. The Mylar speaker and omni-directional microphone with self-draining mount protect the phone against weather.

Viking K-1270-EWP features a highly durable marine grade stainless steel faceplate with Torx security screws to prevent tampering. The built-in directory clearly indicates which button the user should press to dial. As part of a door entry system, Viking K-1270 has an integrated 5A relay for controlling a door strike. The phone has a postal lock input for secure package delivery.

Viking K-1270-EWP Entry Phone Quick Specs:

• Connectivity Type: analog
• Connectors: 19x gel-filled butt connectors
• Proximity Card Reader: 125 kHz 26-bit Wiegand
• Operating Temperature: -30°F - 150°F
• Dimensions: 5" x 10" x 2.5"
• Mounting: flush or surface
• Surface Mount: requires Viking VE-5x10 box

Viking K-1270-EWP Weatherproof Entry Phone Package Contents:

• K-1270-EWP phone
• 12V DC power adapter
• Zinc-plated steel rough-in box
• 8x T-10 Torx security screws and drive bit

Viking K-1270 Series Documentation:

• Viking K-1270 Series Product Manual
