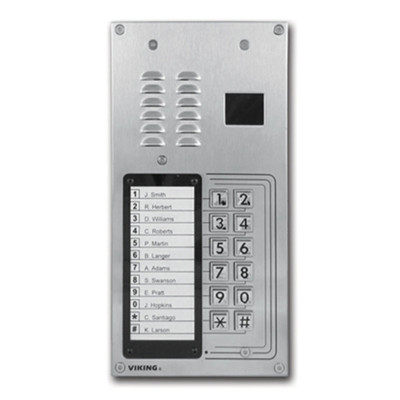

Viking K-1270-IP VoIP Entry Phone with Keypad & Card Reader

Viking K-1270-IP is a vandal-resistant entry phone for apartments and offices. Supporting the SIP protocol, K-1270-IP integrates with a broad range of IP-PBX solutions, including 3CX, Asterisk, Cisco UCM, and Elastix. The heavy duty 12-button keypad provides dialing controls. A built-in directory sits next to the keypad for labeling quick dial actions. K-1270-IP also features a 125 kHz 26-bit Wiegand proximity card reader with LED and beep confirmation, allowing you to program up to 1,000 cards or keyfobs for secure access control.

Viking K-1270-IP features vandal-resistant construction with a 14 gauge stainless steel faceplate, louvered speaker and microphone cover, and Torx security screws to prevent tampering. The entry phone connects to your LAN via an Ethernet cable, and is a Class 2 PoE device for powering it through the network. For outdoors deployment, consider Viking K-1270-IP-EWP, which is IP66-rated because of Viking's Enhanced Weather Protection.

Viking K-1270-IP Entry Phone Quick Specs:

• Connectivity Type: VoIP/IP
• Communications Protocol: SIP
• Ethernet Port: 1x 10/100
• PoE: 802.3af Class 2
• Connectors: 14x gel-filled butt connectors
• Proximity Card Reader: 125 kHz 26-bit Wiegand
• Audio Codecs: G.711μ/a, G.722
• Operating Temperature: -40°F - 140°F
• Ratings: IP66
• Dimensions: 5" x 10" x 2.5"
• Mounting: flush or surface
• Surface Mount: requires Viking VE-5x10 box

Viking K-1270-IP VoIP Entry Phone Package Contents:

• K-1270-IP phone
• Zinc-plated steel rough-in box
• 8x T-10 Torx security screws and drive bit

Viking K-1270-IP Series Documentation:

• Viking K-1270-IP Series Product Manual
• Viking K-1270-IP Series Quick Start Guide
• Viking VoIP Compatibility Guide
