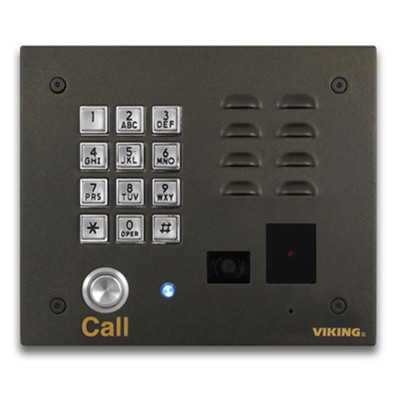

Viking K-1775-BN-IPEWP VoIP Video Entry Phone with Keypad & Card Reader, Bronze

Viking K-1775-BN-IPEWP is a weatherproof and vandal-resistant entry phone with VoIP integration. This model features Viking's Enhanced Weather Protection, which includes a Mylar speaker, watertight wire connections, self-draining microphone, and more to give it an IP66 rating. Viking K-1775-BN-IPEWP has an oil rubbed bronze faceplate with a weather-resistant powder paint. The entry phone is network-enabled, and is compatible with a wide range of SIP platforms, including 3CX, Asterisk, Cisco UCM, and many more. VoIP integration makes the entry phone simple to manage and secure.

Viking K-1775-BN-IPEWP also has an integrated CCTV camera with wide-angle lens for increased security. The built-in 125 kHz 26-bit Wiegand proximity card reader allows you to program up to 1,000 keyless entry codes for simple, secure entry using a compatible proximity card or keyfob. It also has a contact closure for control door strikes or gate entrances. The heavy duty keypad allows users to dial one of 250 programmable numbers. It connects to your network using a single Fast Ethernet port, and is a Class 2 PoE device for powering the phone through the network. It comes with Torx security screws to prevent tampering. Flush mount it using the included rough-in box, or surface mount it using the optional Viking VE-6x7 box.

Viking K-1775-BN-IPEWP Entry Phone Quick Specs:

• Connectivity Type: VoIP/IP
• Communications Protocol: SIP
• Ethernet Port: 1x 10/100
• PoE: 802.3af Class 2
• Connectors: 14x gel-filled butt connectors
• Proximity Card Reader: 125 kHz 26-bit Wiegand
• Camera: analog NTSC
• Sensor: 1/4" color CMOS
• Lens: 2.1mm, conical pinhole
• Video Resolution: up to 640x480 at 30 fps
• Field of View: 80°H x 60°V, 100° diagonal
• Audio Codecs: G.711μ/a, G.722
• Operating Temperature: -40°F - 140°F
• Ratings: IP66
• Dimensions: 5.5" x 6.5" x 2.6"
• Finish: oil rubbed bronze
• Mounting: flush or surface
• Surface Mount: requires Viking VE-6x7 box

Viking K-1775-BN-IPEWP VoIP Entry Phone Package Contents:

• K-1775-BN-IPEWP phone
• Rough-in box
• 4x T-10 Torx security screws with drive bit

Viking K-1775 Series Documentation:

• Viking K-1775 Series Product Manual
• Viking K-1775 Series Quick Start Guide
• Viking VoIP Compatibility Guide
