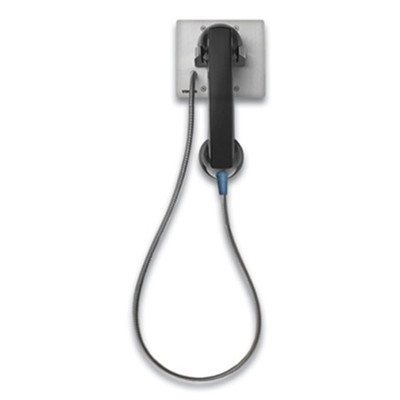

Viking K-1900-7-IP-EWP VoIP Auto-Dialling Panel Phone

Viking K-1900-7-IP-EWP is a vandal-resistant panel phone that automatically dials a number through your VoIP phone system to provide a hot-line. This model features Viking's Enhanced Weather Protection, which provides gasketing and more to make the phone IP66-rated. Suitable for outdoors placement, K-1900-7-IP-EWP has a 54" armored phone cable, longer than K-1900-7-IP. Once the handset is lifted, K-1900-7-IP-EWP is programmed to dial any phone number of 1-20 digits. It can be programmed to dial an additional four phone numbers to make sure the call is received. These calls are placed through the VoIP system using the open SIP protocol. Viking has broad interoperability with leading VoIP platforms, including 3CX, Asterisk, Cisco UCM, and Switchvox. The phone also has integrated 2-amp relay contacts for gate or door control.

Viking K-1900-7-IP-EWP has a front panel made out of marine grade stainless steel with laser-etched graphics, a heavy duty metal hook switch, armored cable and Torx T-10 security screws to prevent tampering. Program the phone through the network. The phone is PoE compliant to reduce infrastructure needs. K-1900-7-IP is flush-mounted using a double-gang box (not included). Surface mount the phone using Viking VE-5x10, VE-5x10-SS, or VE-9x20 box.

Viking K-1900-7-IP Panel Phone Quick Specs:

• Connectivity Type: VoIP/IP
• Communications Protocol: SIP
• Ethernet Port: 1x 10/100
• PoE: 802.3af Class 1
• Connectors: 14x gel-filled butt connectors
• Audio Codecs: G.711μ/a, G.722
• Operating Temperature: -40°F - 140°F
• Ratings: IP66
• Dimensions: 5" x 10" x 4"
• Finish: brushed stainless steel
• Mounting: flush or surface
• Surface Mount: requires Viking VE-5x10, VE-5x10-SS, or VE-9x20 box

Viking K-1900-7-IP-EWP VoIP Panel Phone Package Contents:

• K-1900-7-IP-EWP phone
• 8x T-10 Torx security screws with drive bit

Viking K-1900-7 IPSeries Documentation:

• Viking K-1900-7 IP Series Product Manual
• Viking K-1900-7 IP Series Quick Start Guide
• Viking VoIP Compatibility Guide
