Yealink ZVC830 Zoom Rooms Video Conferencing System - ZVC830-Wired-N8i5C

The Yealink ZVC830 has been phased out and is no longer available for purchase. The recommended replacement is the Yealink ZVC840.

Get an all-in-one Zoom Rooms video conferencing system for large rooms. Yealink ZVC830 is a certified Zoom Rooms solution. The package includes three Yealink VCM34 Microphones, Yealink UVC80 Camera, Yealink MTouch, Yealink MSpeaker, and Mini-PC. The system comes with the Zoom Rooms app with Yealink plug-in preinstalled, so the system is ready for professional video conferencing — right out of the box.

Yealink UVC80 is a professional camera with full PTZ functionality: 200° panning range, 60° tilting range, and 12x optical zoom. The camera takes detailed 1080p Full HD video. The wide-angle lens captures all the faces in the conversation.

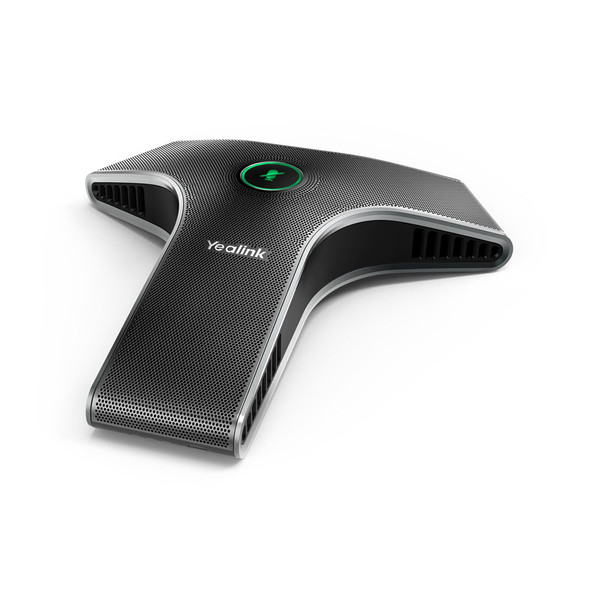

The package includes three microphones to capture all the voices. Yealink VCM34 is a compact microphone array that pickups voices in 360° out to 20 ft. With three VCM34s, you get coverage for sizable Zoom conferences.

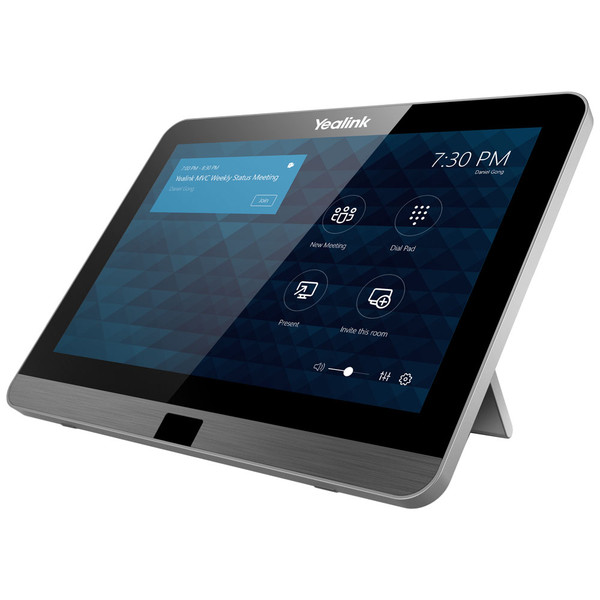

Yealink MTouch is a dedicated console for managing video conferences. MTouch is an 8-inch capacitive touchscreen tablet. It shows the familiar Zoom Rooms interface to reduce friction and provide a seamless experience.

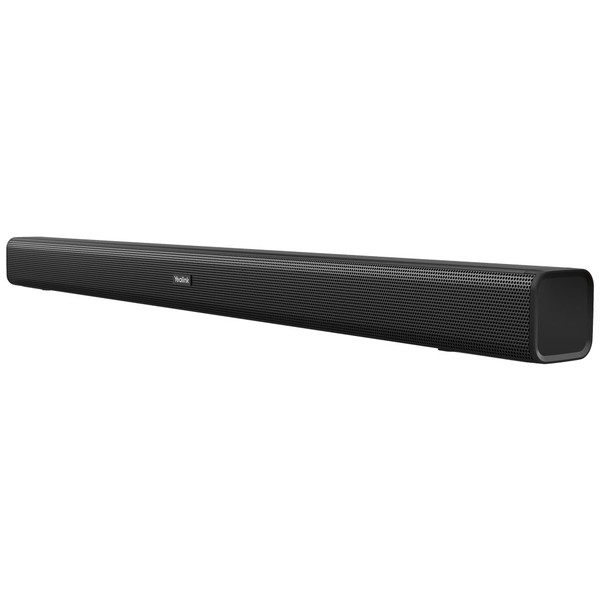

Yealink MSpeaker is a powerful speaker bar with a four 10W speaker array. MSpeaker projects audio loudly and clearly so everyone will hear the conversation.

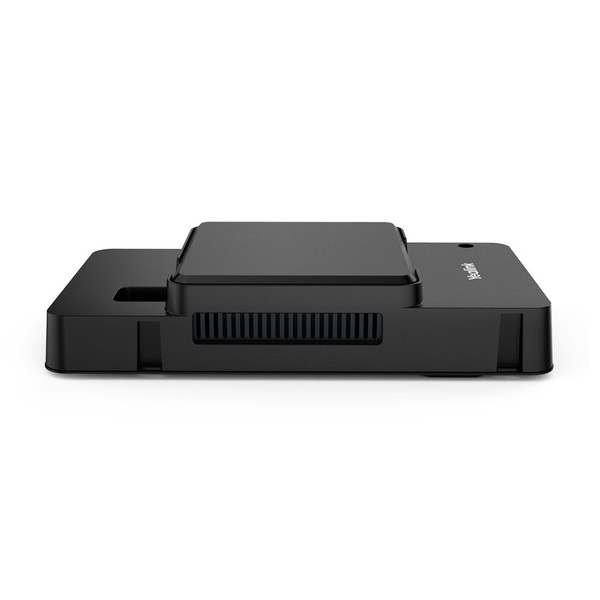

ZVC830 Zoom Rooms Kit includes an ultra-compact mini-PC with an 8th-generation Intel Core i5 processor and 128GB SSD. The mini-PC is a powerful dedicated control center for the Zoom Rooms system. The Windows PC comes with the Zoom Rooms app and Yealink plug-in preinstalled. It connects to the network via either Wi-Fi or Ethernet.

Yealink ZVC830 Quick Specs:

• Yealink UVC80:
• Video Resolution: up to 1080p @ 60 fps
• PTZ:
• Pan: 200°
• Tilt: 60°
• Zoom: 12x optical
• Field of View: 78.5° (diagonal)
• Connectors:
• Audio: 1x 3.5 mm input, 1x 3.5 mm output
• Microphone: 1x RJ45
• USB: 1x USB-A 2.0, 1x USB-B 2.0
• Yealink MTouch:
• Display: 8 in (1280x800) capacitive touchscreen IPS
• Connectors:
• Audio: 1x 3.5 mm
• USB: 1x USB
• Yealink VCM34:
• Microphone: built-in, 3 mic array
• Pickup: 20 ft, 360°
• Mini-PC:
• CPU: 8th-gen Intel Core i5
• RAM: 8GB (2 x 4GB)
• Storage: 128GB SSD
• Wi-Fi: yes
• Bluetooth: yes
• Connectors:
• HDMI: 2x video output
• Ethernet: 1x Gigabit
• USB: 4x USB-A 3.1
• USB-C: 1x USB-C Thunderbolt 3
• Power: 1x power port

Yealink ZVC830-Wired-N8i5C Zoom Rooms Kit Package Contents:

• Yealink MSpeaker
• Yealink UVC80 Camera
• 3x Yealink VCM34 Microphones
• Yealink MTouch
• Mini-PC and Cable Management Box
