Yealink ZVC840 Zoom Rooms Kit, No Audio - ZVC840-C2-000

Yealink ZVC840-C2-000 is a Zoom Rooms Kit for companies who already have speakers and microphones that they want to use and who want peripherals and mini-PC to complete a professional Zoom ecosystem in large to extra-large conference rooms. This Zoom Rooms Certified video conferencing kit comes with a Yealink UVC84 PTZ Camera, Yealink MTouch II Touch Controller and Yealink MCore Mini-PC. If you want this system with microphones and a sound bar, search for Yealink ZVC840-C2-310.

Yealink UVC84 is a 4K Ultra HD video conferencing camera with full PTZ capabilities — perfect for larger spaces. Its ultra-high video resolution gives you plenty of detail while its 12x optical zoom lets you pick out individual faces — versatile. MTouch II is a dedicated console for managing meetings — comes with the Zoom Rooms app preinstalled. The tablet provides a central control center, so you can adjust cameras, schedule meetings and more — all from MTouch II. MCore is an ultra-compact mini-PC with specs chosen to meet to the requirements of a professional Zoom experience. As with MTouch II, MCore comes with the Zoom Rooms app preinstalled — ready to go out of the box.

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink ZVC840-C2-000 Quick Specs:

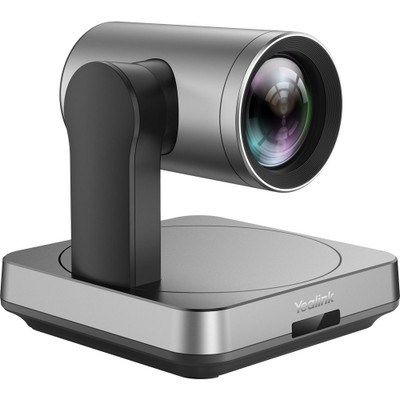

Yealink UVC84:

• Video Resolution: up to 4K Ultra HD
• Pan: 200°
• Tilt: 130°
• Zoom: 12x optical
• Field of View (Diagonal): 80°
• Physical Connectors:
• Audio: 1x 3.5 mm line out
• Microphone: 1x RJ45
• USB: USB-B 2.0
• Power: 1x power port
• Security: 1x security lock slot

Yealink MTouch II:

• Display: 8 in (1280 x 800 px) capacitive touchscreen
• Physical Connectors:
• Headset: 1x 3.5 mm
• USB-A: 1x connects to WPP20, 1x connects to USB audio device
• USB-C: 1x connects to PC for wired sharing
• RJ45: 1x connects to MCore (MTouch II is powered by MCore)
• Adjustable Bracket Angle: 28° to 50°

Yealink MCore:

• CPU: Intel Quad-Core i5
• RAM: 8 GB (2 x 4 GB)
• SSD: 128 GB
• Wi-Fi: yes
• Bluetooth: yes
• Physical Connectors:
• HDMI: 2x video output
• USB: 4x USB-A 3.0
• Ethernet: 1x Gigabit
• RJ45: 1x for MTouch II
• Power: 1x power port
• Security: 1x security lock slot

Yealink ZVC840-C2-000 Zoom Rooms Kit Package Contents:

Yealink UVC84:

• UVC84 Camera
• 7.5 m Ethernet Cable
• 2.5 m USB Cable
• VCR20 Remote Control
• Power Adapter
• Mounting Bracket and Accessories
• Velcro
• Quick Start Guide

Yealink MTouch II:

• MTouch II Touch Controller
• 7.5 m Ethernet Cable
• USB-C Cable with HDMI Adapter
• Mounting Bracket and Accessories
• Screwdriver
• Quick Start Guide

Yealink MCore:

• MCore Mini-PC
• 2x 1.8 HDMI Cables
• Bracket
• Power Adapter
• Velcro
• Expansion Screws and Machine Screws
• Screwdriver
• Quick Start Guide

Yealink ZVC840 Documentation:

• Yealink ZVC840 Datasheet
