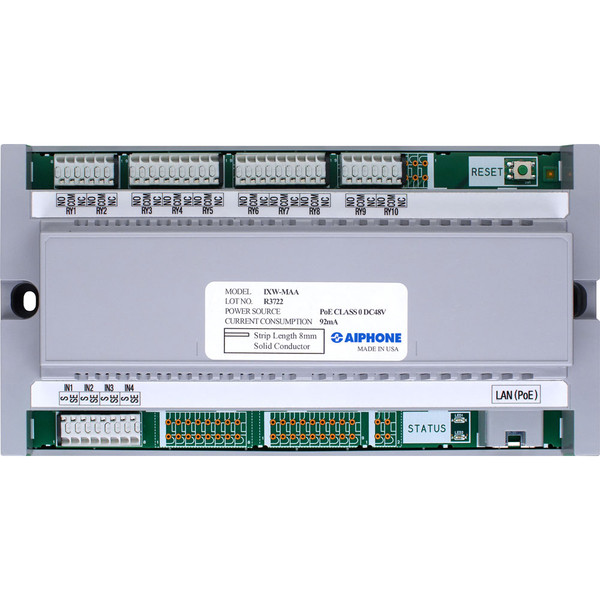

Aiphone IXW-MAA Multi-Purpose Adapter
$1,038.00
$579.99
(You save
$458.01
)
- SKU:
- IXW-MAA
- UPC:
- 788255371549
- Condition:
- New
- Availability:
- Usually Ships Same Business Day
- Shipping:
- Calculated at Checkout
- Warranty:
- 2 Year
Have a question?
-
Industry Best Pricing
Quantity discounts available
-
Friendly Associates
Pre-sales product and solution advice
-
Expert Tech Support
Add-on tech support plans available
-
Super Fast Delivery
Same day shipping on most orders
Aiphone IXW-MAA Multi-Purpose Adapter
$1,038.00
$579.99
(You save
$458.01
)
Aiphone IXW-MAA is a multi-purpose adapter for compatible Aiphone IX Series devices. IXW-MAA features 10 programmable relay outputs that can be assigned to a specific station and programmed to react to changes in status from the connected station. In other words, you can use IXW-MAA to enable door strike release and more. The adapter also has 4 contact inputs that can send a command back to a connected station.
IXW-MAA is a network-connected device that you program via the Aiphone IX Support Tool application. It connects to the network via a standard Ethernet cable and is powered via POE (Power Over Ethernet). Mount it to a standard DIN rail or surface-mount it to a wall.
© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.
Aiphone IXW-MAA Quick Specs:
- I/O: 4x contact inputs, 10x Form C relay outputs
- Relay Contact Rating: 24V AC/DC 500mA
- Ethernet Port: 1x 10/100 RJ45 POE
- POE (Power Over Ethernet): 802.3af Class 0
Aiphone IXW-MAA Multi-Purpose Adaptor Package Contents:
- Adapter
- Installation Manual
- Programming Guide
Aiphone IXW-MAA Documentation:
- Device Type:
- Accessory
- Connectivity Type:
- IP/VoIP
